Float & Swivel

Float & Swivel

Application

Our Float & Swivel product offers a specific functional design. It allows the rotation of a work desk or bench on top of a stationary furniture element such as a shelf, cupboard, or sideboard, floating freely without a supporting side leg.

Our smart products are enabling space saving, ideal for kitchen, home office and similar environments, where the usage of a furniture element is only required temporarily or at certain times. The moveable part can be rotated specifically when placed in a corner, a movement that is normally not possible.

With our unique pull-turn-push movement, the rectangular table or workbench is first moved away from obstructing walls, then rotated by 90 degrees and moved to the final open position for usage. And this is how your kitchen or work space can easily be expanded. When not in use, your desk or bench can be stowed away easily with our simple pull-turn-push move.

Due to its symmetrical design the Float & Swivel product can be installed for left or right usage.

For installation a rectangular, moveable table or work bench without a side leg as well as a stationary furniture base such as a shelf, kitchen bench or similar is required.

The installation requires milling.

Technical details

Applicable width of desk (w): 600, 650 and 700 mm

Desk length (l): 1500 -1600 mm

Minimum board thickness (t): 19 mm

Gap between furniture and desk (g): 25 mm

Loading weight in open position, maximum: 40 kg

Drill plan available.

Material: Steel, Plastic

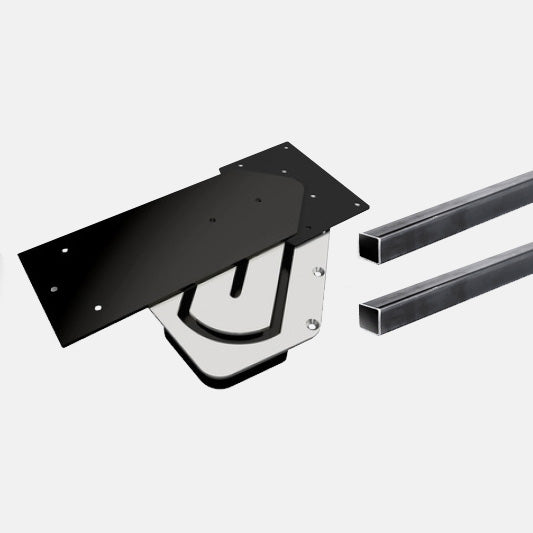

Includes

• 2 steel supporting bars
• 2 holding parts

• ST4070 mechanism
• 1 locking plate
• 2 spacing elements
• Screws and parts for mounting

currently 5-6 weeks production time - Contact us for further information

Note:

- All prices shown are before VAT and Shipping. Final price at checkout.

• Please be informed that VAT cannot be waived or refunded through the online shop for EU industry customers. EU industry customers should therefore contact us outside the webshop via info@thehynge.de to purchase our products via email and a VAT free invoice (VAT ID is required).

Downloads

Installation instruction - right opening

Installation instruction - left opening

Open Close Operation

ST4070 3D STEP FILE - milling template

ST4070 2D DXF FILE - milling template

ST4070 2D DWG FILE - milling template

ST4070 3D PDF FILE
