Slide & Swivel
Application
Our Slide & Swivel models are currently our smartest and most enhanced products. They offer ultimate space flexibility through the combination of sliding side ways and the rotation of a work desk or bench on top of a stationary furniture element such as a shelf, kitchen bench, sideboard or even retail areas.
Our smart products are enabling space saving, ideal for kitchen, home office and similar environments, where the usage of a furniture element is only required temporarily or at certain times. The moveable part can be slidden sideways and also rotated specifically when placed in a corner, a movement that is normally not possible.

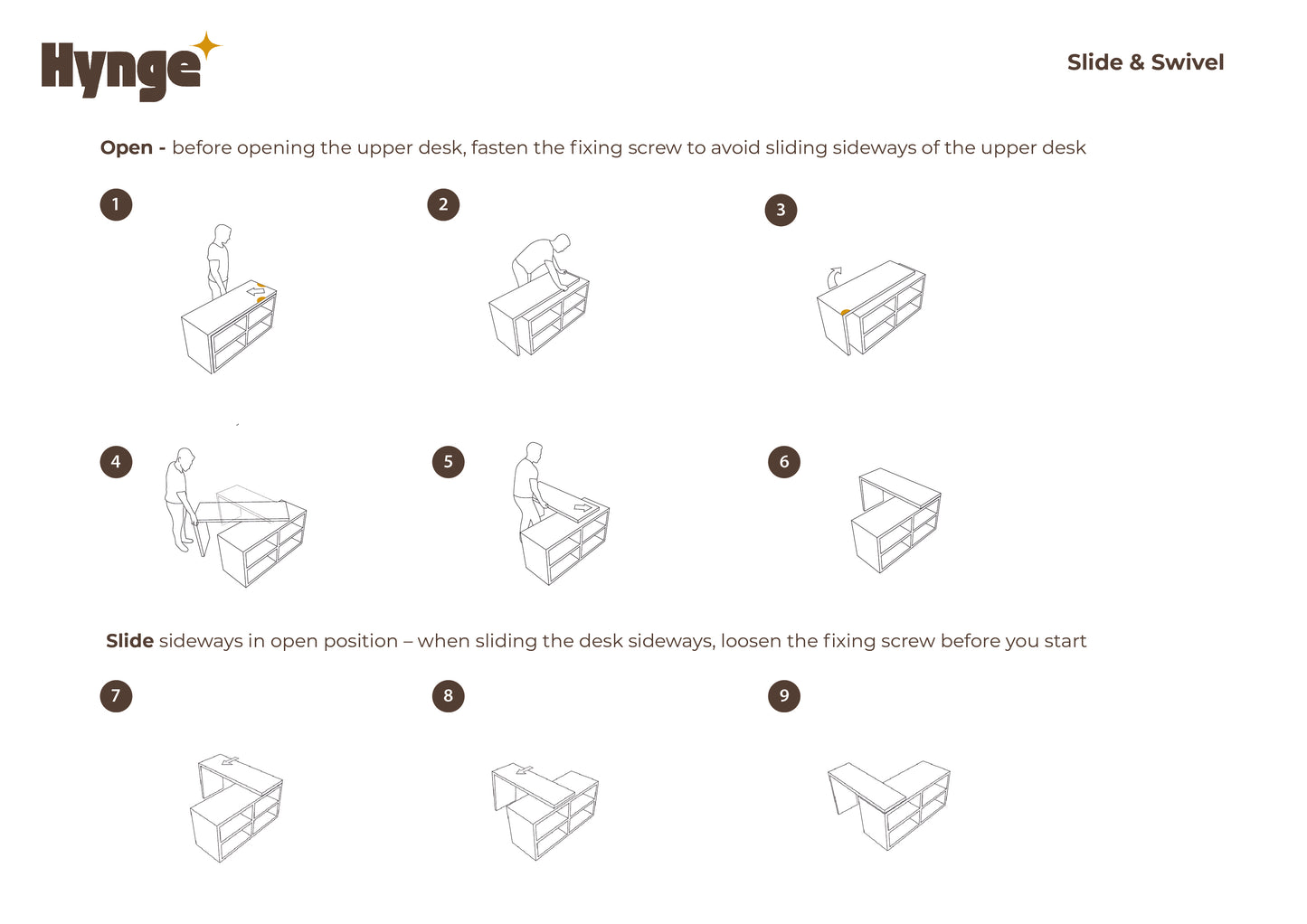

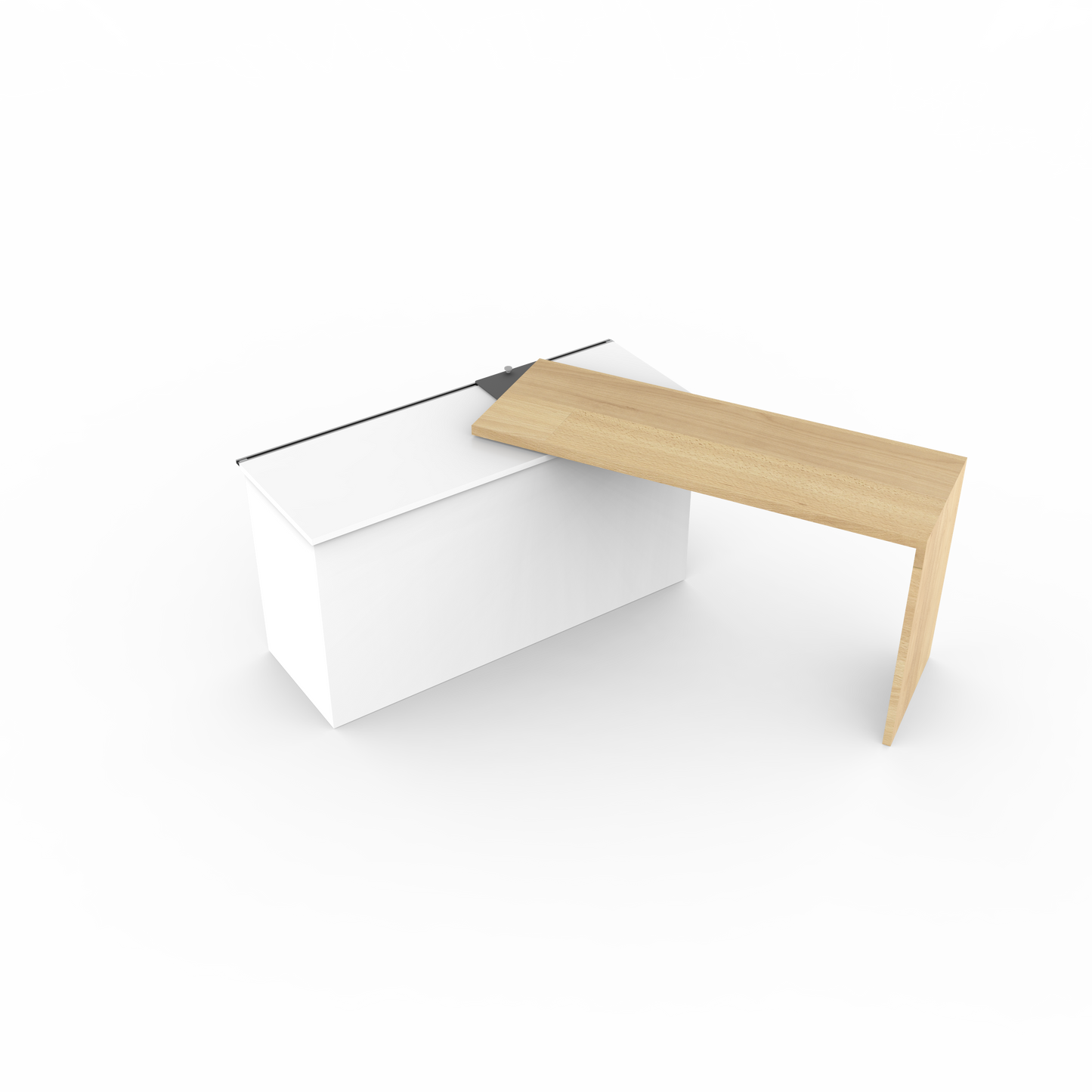

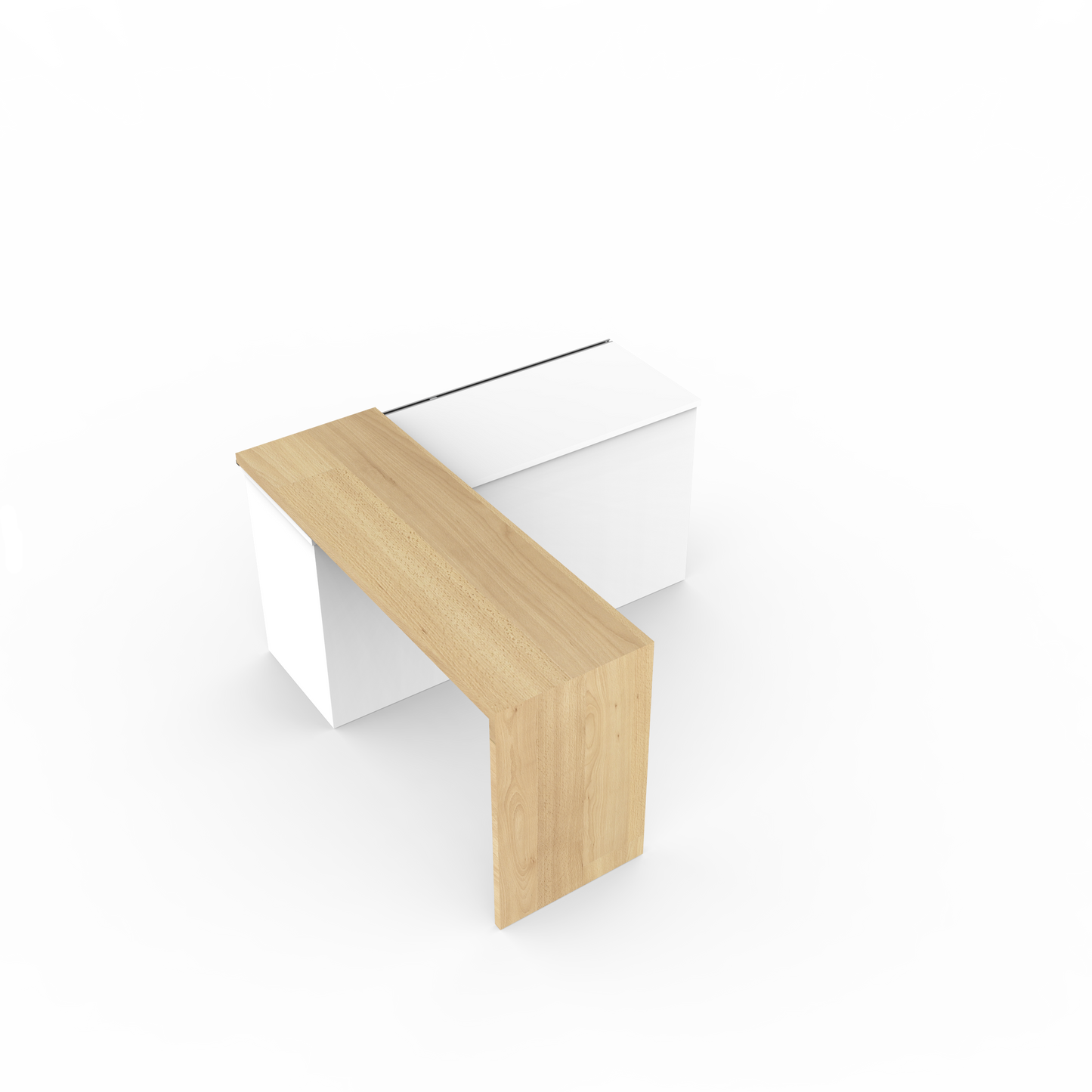

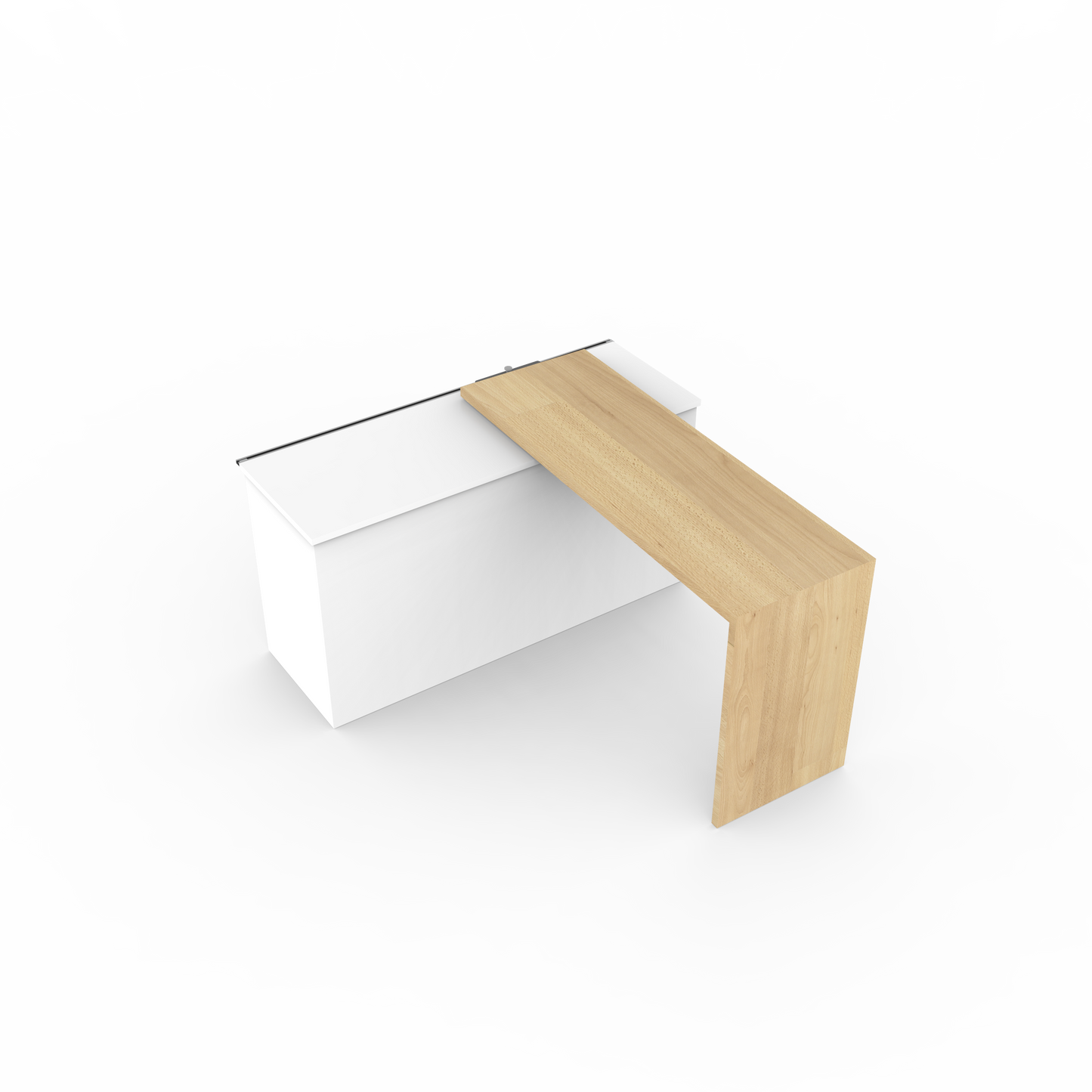

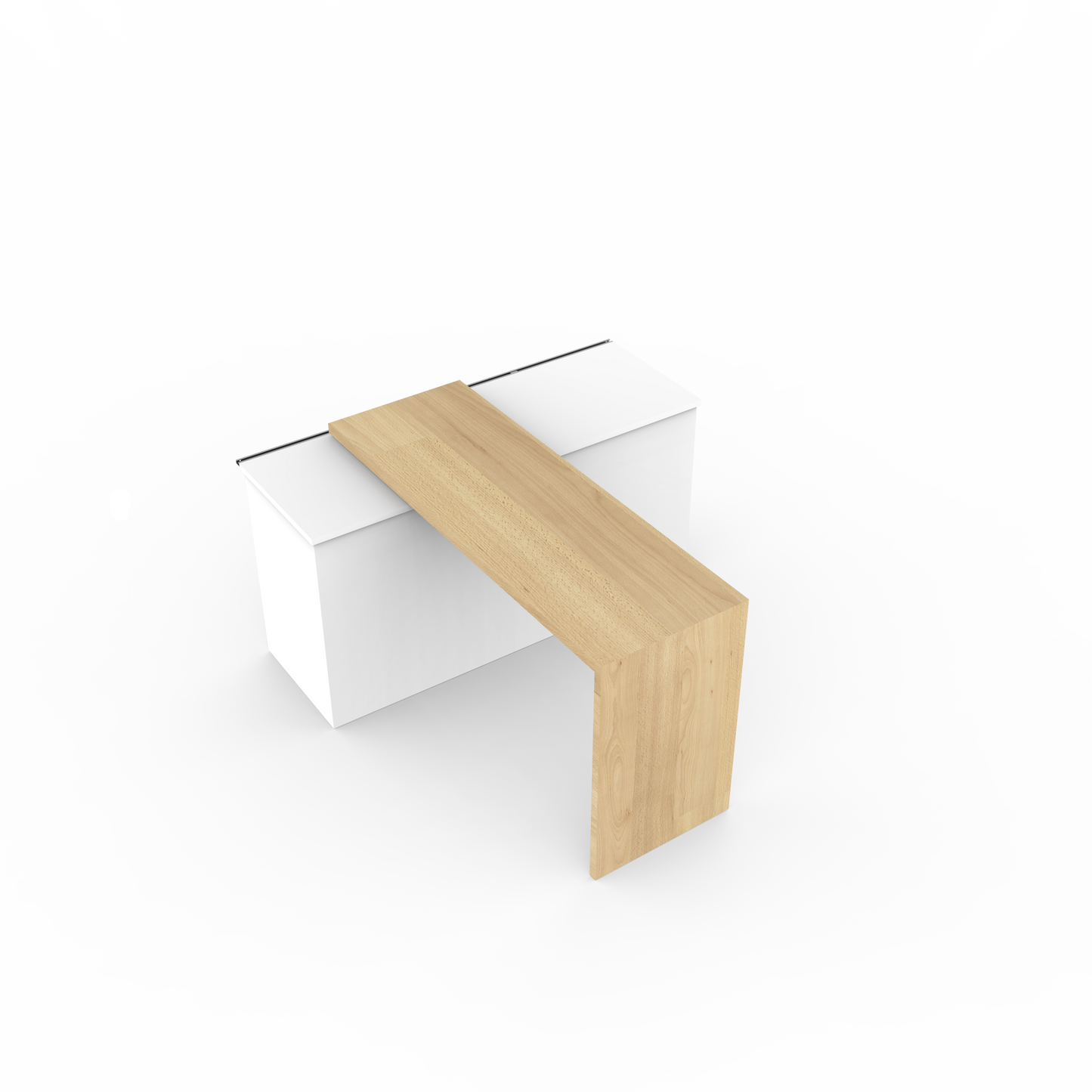

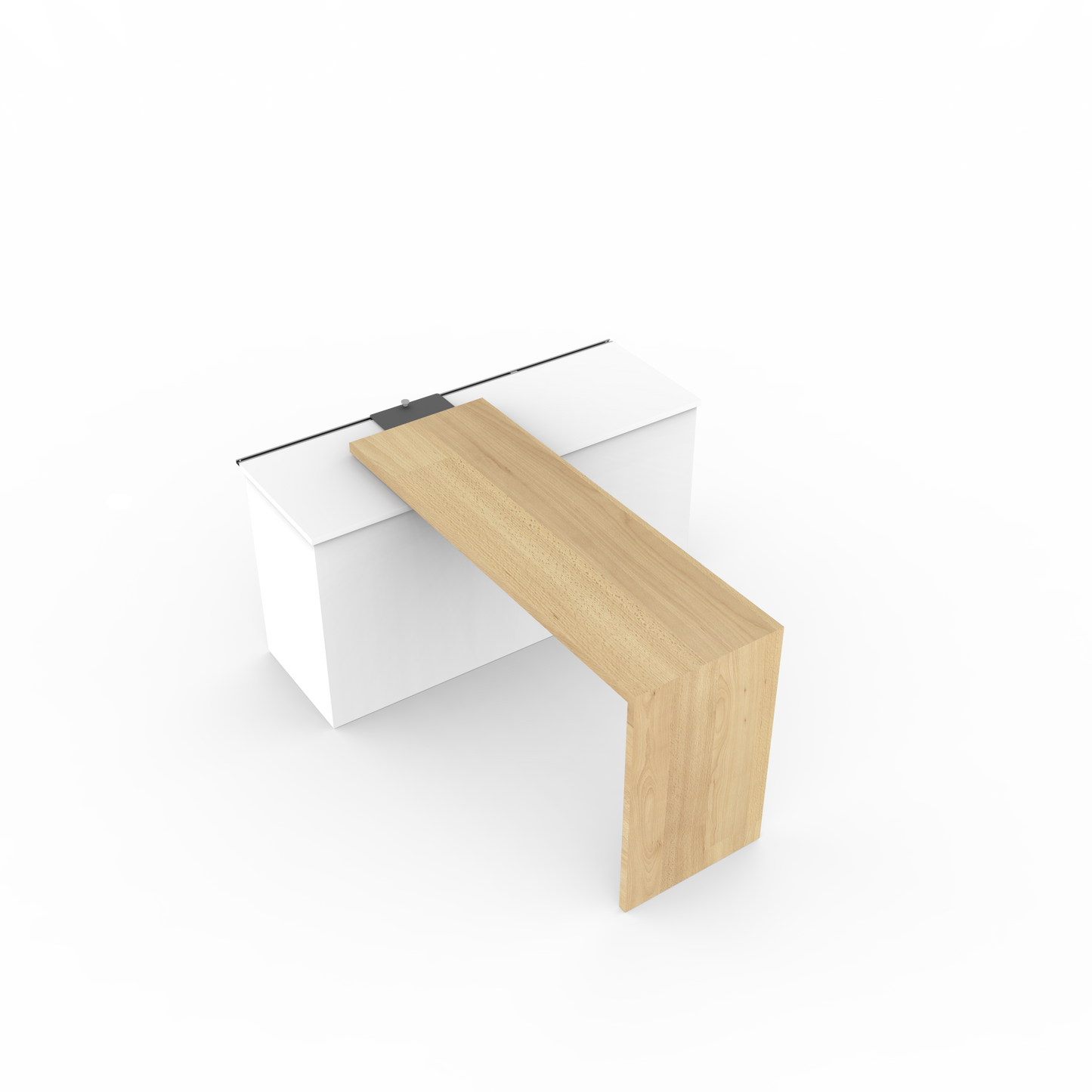

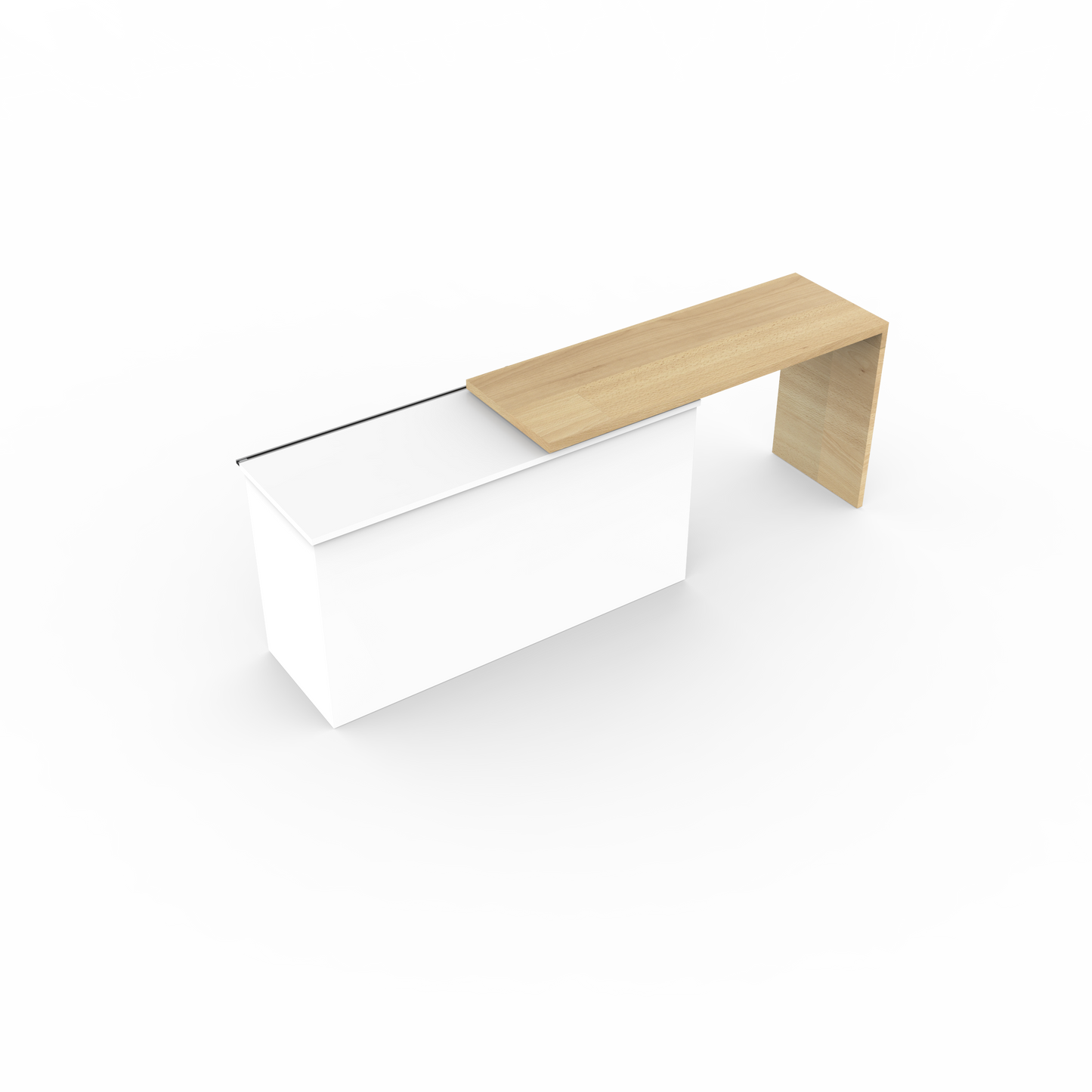

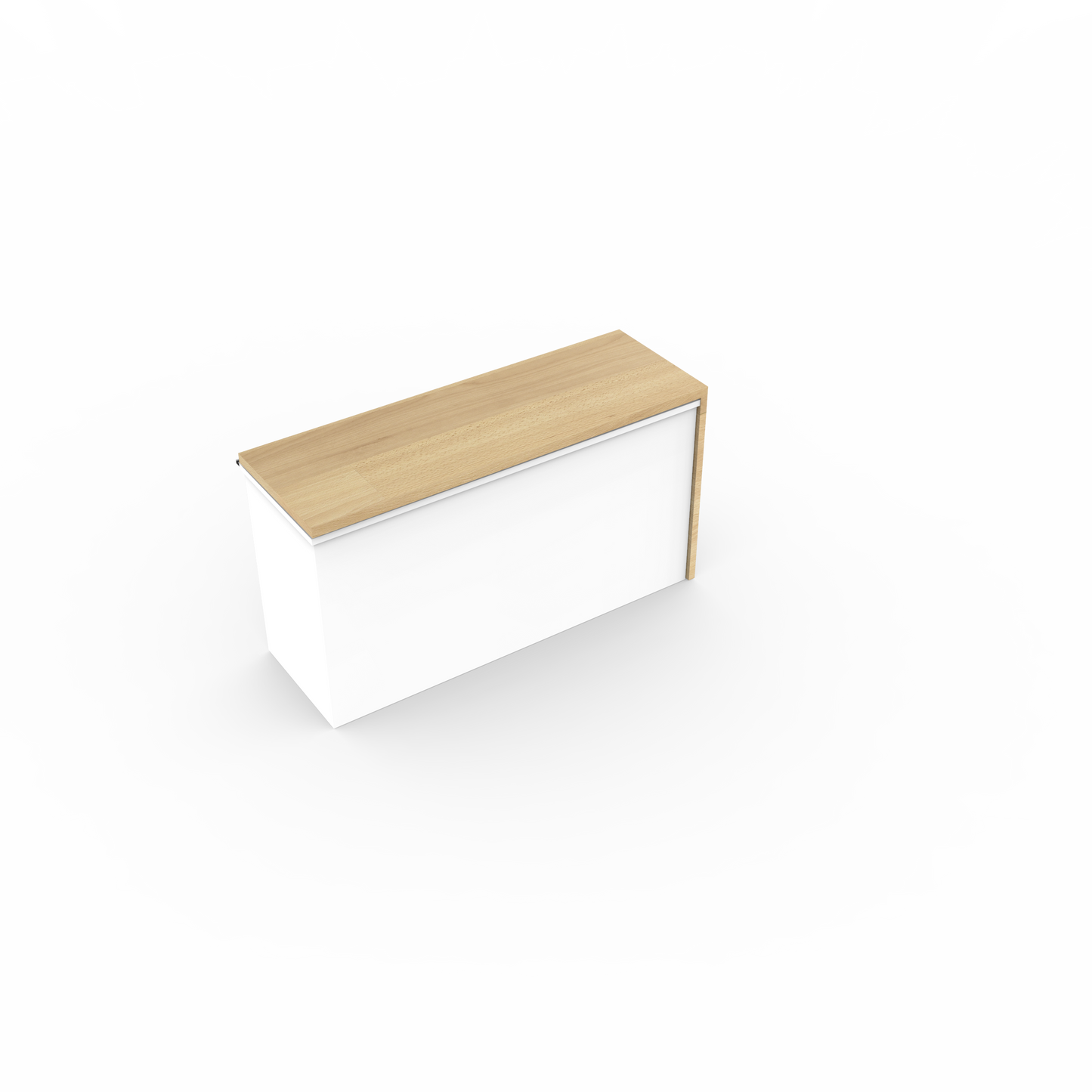

From the closed position the upper moving table or work bench can ben moved side ways to create a work space besides the side cabinet. At any given position sideways with our unique pull-turn-push movement, the rectangular table or work bench can also first be moved away from obstructing walls, then rotated by 90 degrees and moved to the open position. In the open position, the desk or bench can again be moved sideways along the furniture. When not in use, your desk or bench can be stowed away easily with our simple pull-turn-push movement or by sliding it side ways, depending how your desk was used last.
Due to its symmetrical design the Slide & Swivel models can be installed for left or right usage.
For installation a rectangular, moveable table or work bench with a side leg is needed, as well as a stationary furniture base such as a shelf or similar.
The installation requires milling.
Technical details
sizes available as per width of desk (w): 450, 550, 600, 650 and 700 mm (table width does not include width of sliding bar)
Standard length of sliding bar: 1500 and 2000 mm, or customisation up to 2000 mm on request, please specify in order
Minimum thickness of upper desk (t): 38 mm
Gap between furniture and desk (g): 9.8 mm
Milling requirement in upper desk: template as file and instruction provided at purchase.
Outer dimensions sliding rail: 28 x 15 mm x L
Material: Steel, Plastic, Aluminum
Includes
- Sliding bar
- Slider tray (select required size according to table width: 450 mm, 550 mm, 600 mm, 650 mm, 700 mm)

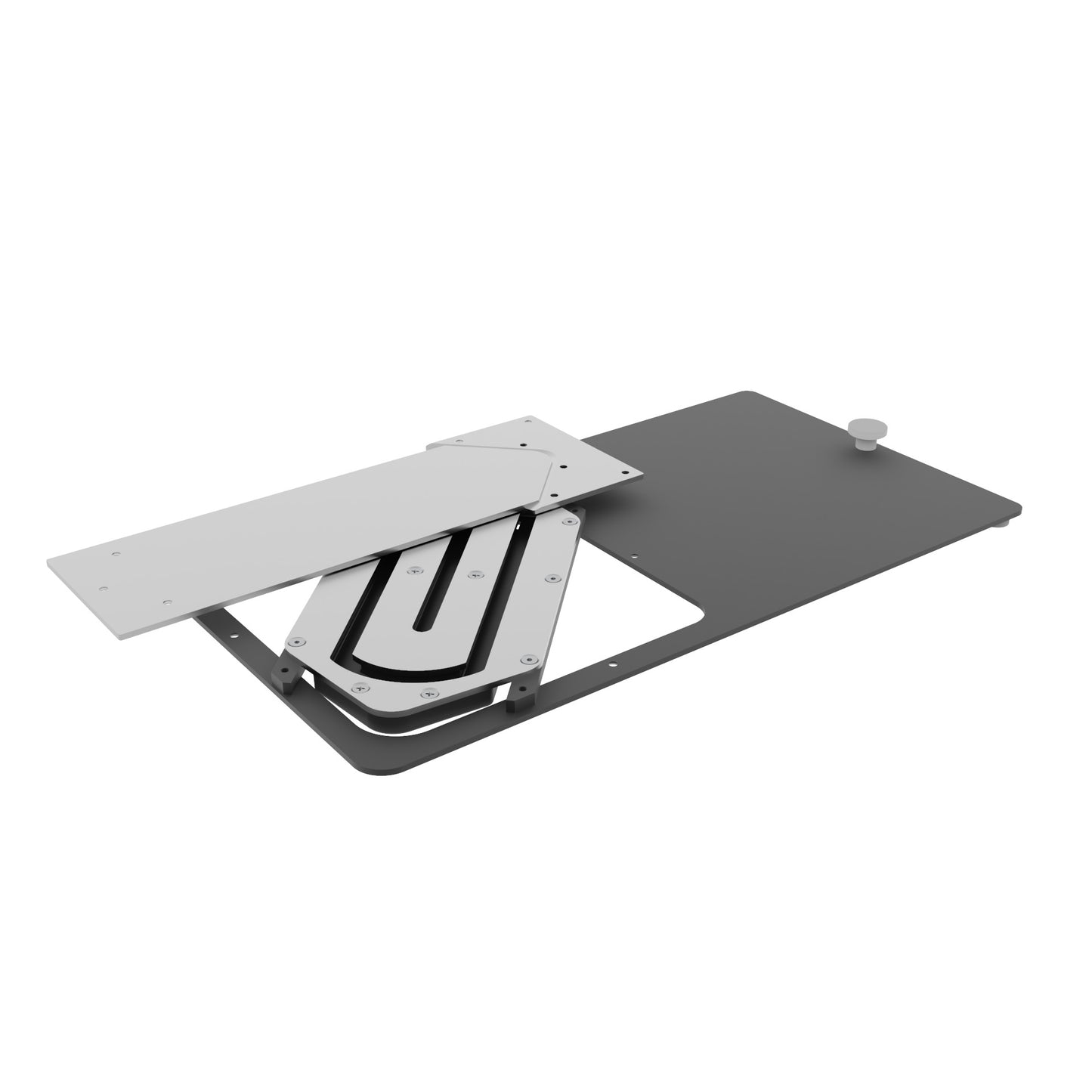

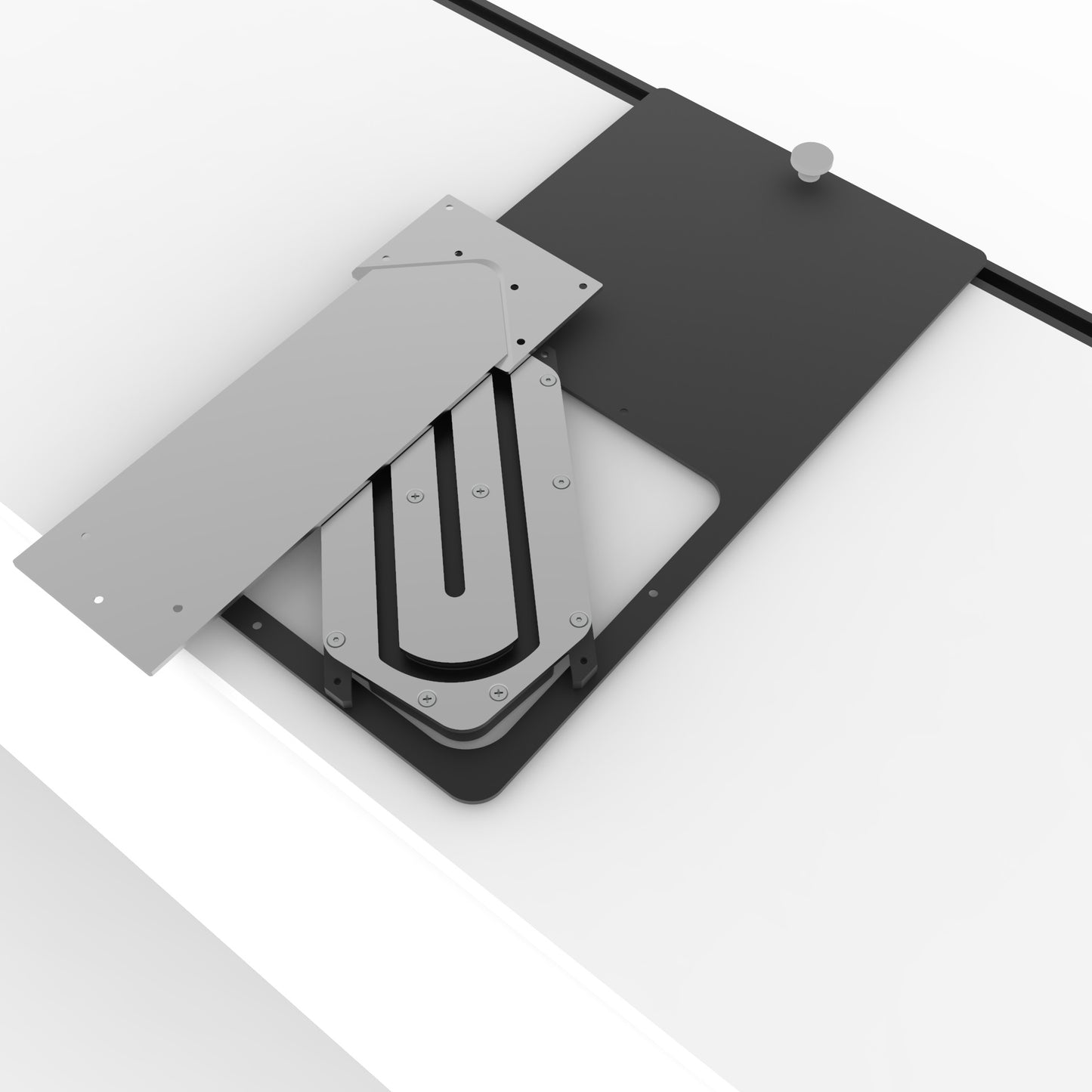

- ST3040 or ST4070 mechanism (based on selected Slide & Swivel size)
- Screws/ parts for mounting
For optimal and robust design of your corner connections, view our supporting products such as furniture metal angle or Corner Connector by Holzdesign, and for appropriate desk movement view our supporting product such as felt/plastic floor gliders and plastic castors.
Note:
- All prices shown are before VAT and Shipping. Final price at checkout.
- Please be informed that VAT cannot be waived or refunded through the online shop for EU industry customers. EU industry customers should therefore contact us outside the webshop via info@thehynge.de to purchase our products via email and a VAT free invoice (VAT ID is required).
Downloads
Installation Instruction
Open Close Slide Operation
Installation Advice
SS45
SS45 - Milling Template drawing
SS45 - 3D Milling Template STEP File
SS45 - 2D Milling Template DXF File
SS45 - 2D Milling Template DWG File
SS55 - SS60 - SS65 - SS70
SS55 - SS60 - SS65 - SS70 Milling Template Drawing
SS55 - SS60 - SS65 - SS70 - 3D Milling Template STEP File
SS55 - SS60 - SS65 - SS70 - 2D Milling Template DXF File
SS55 - SS60 - SS65 - SS70 - 2D Milling Template DWG File
