Swivel Top
Application

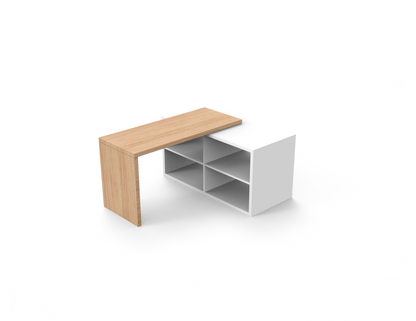

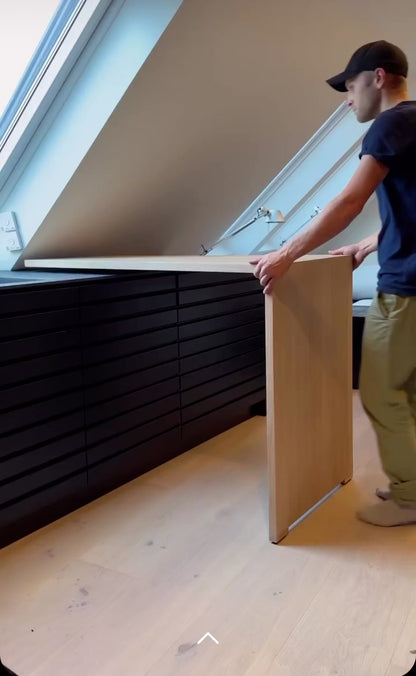

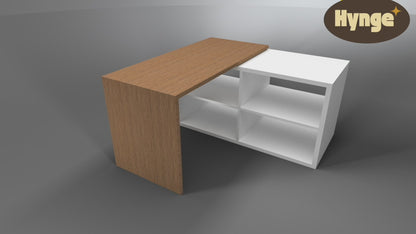

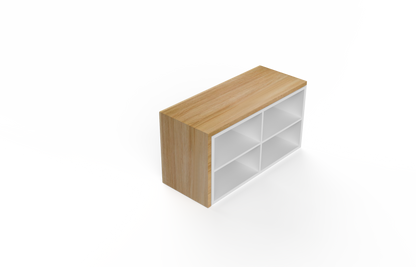

Our Swivel Top models allow the rotation of a work desk or bench on top of a stationary furniture element such as a shelf, cupboard, or sideboard.
Our smart products are enabling space saving, ideal for kitchen, home office and similar environments, where the usage of a furniture element is only required temporarily or at certain times. The moveable part can be rotated specifically when placed in a corner, a movement that is normally not possible.
With our unique

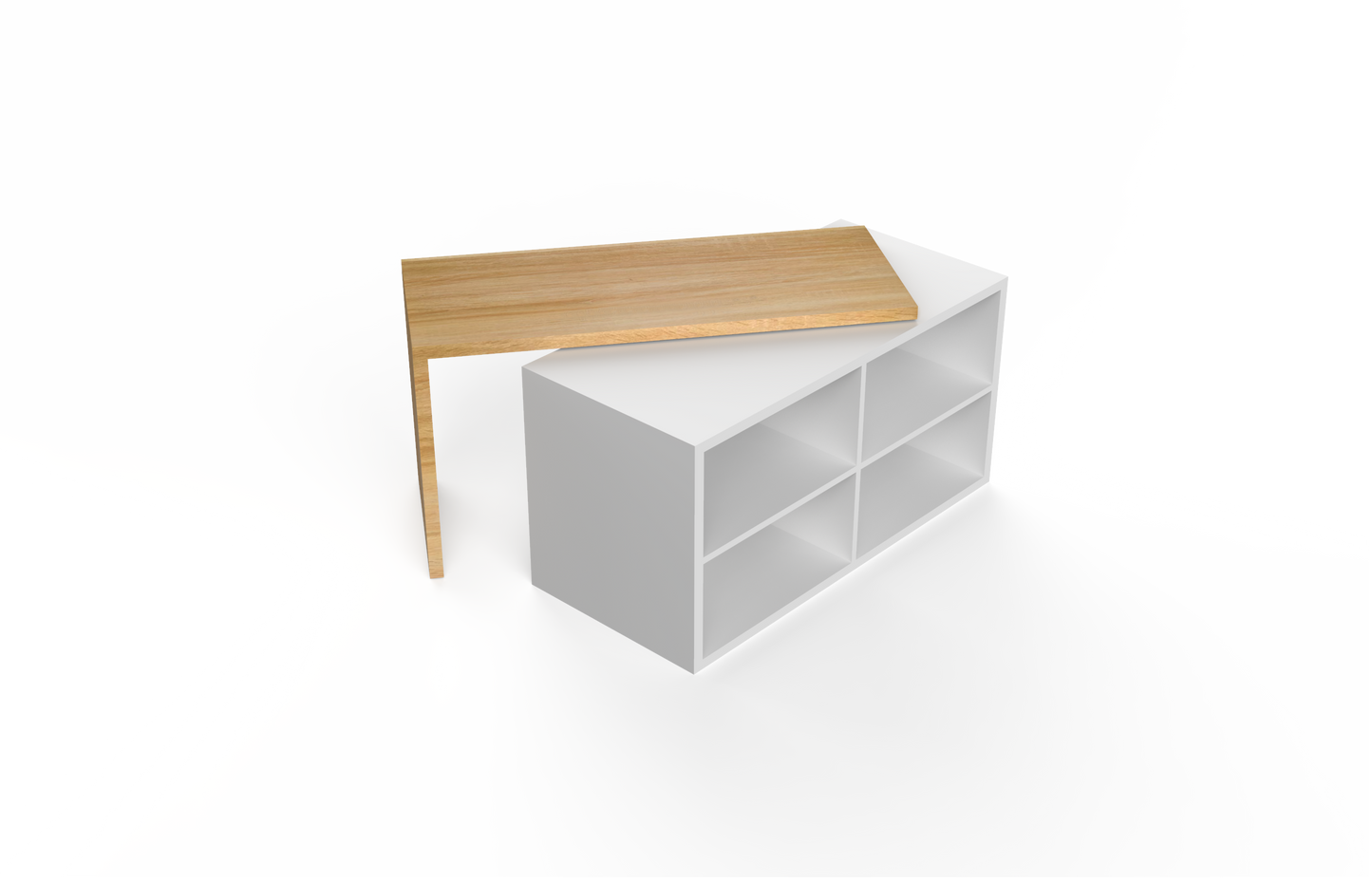

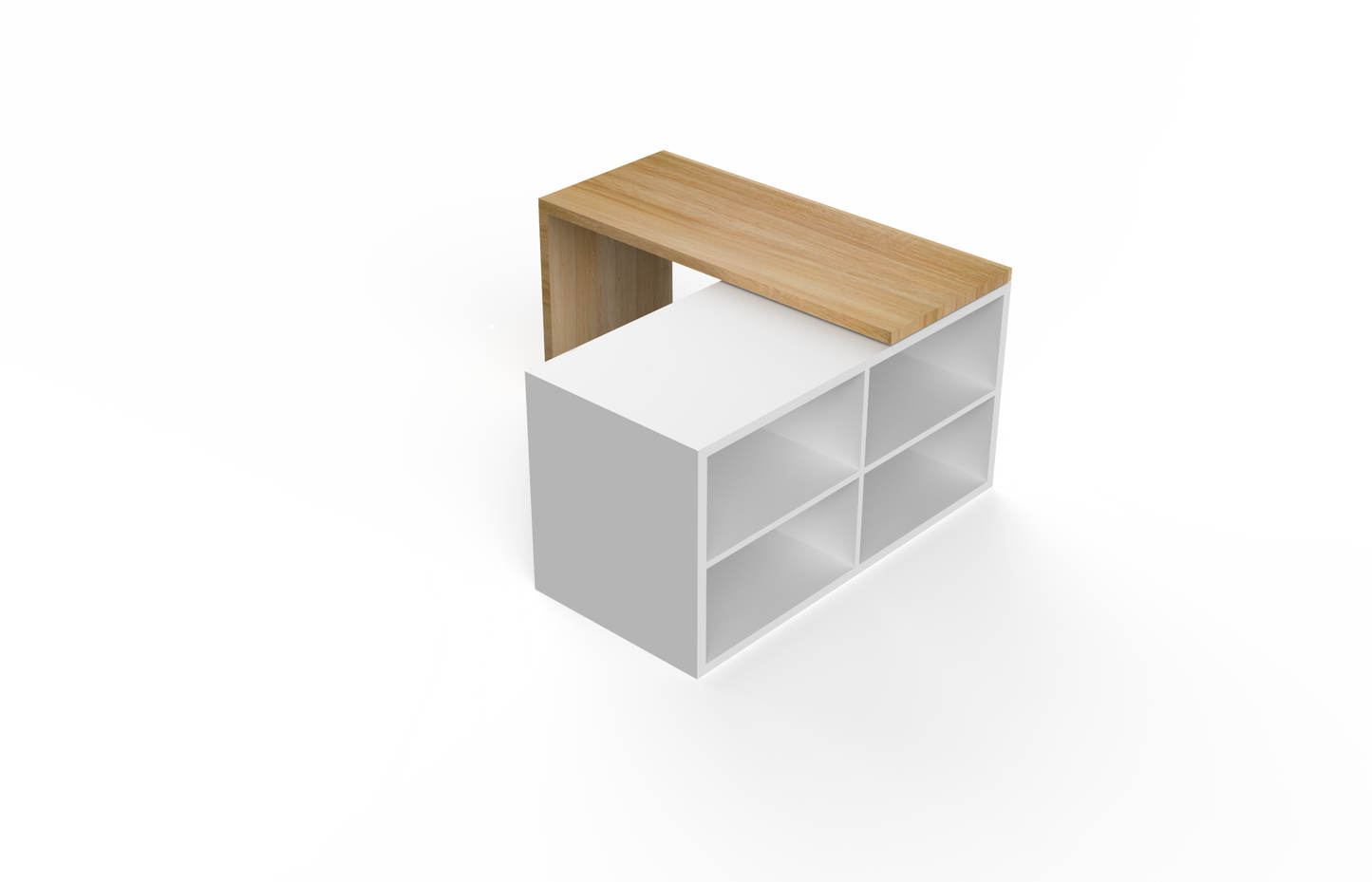

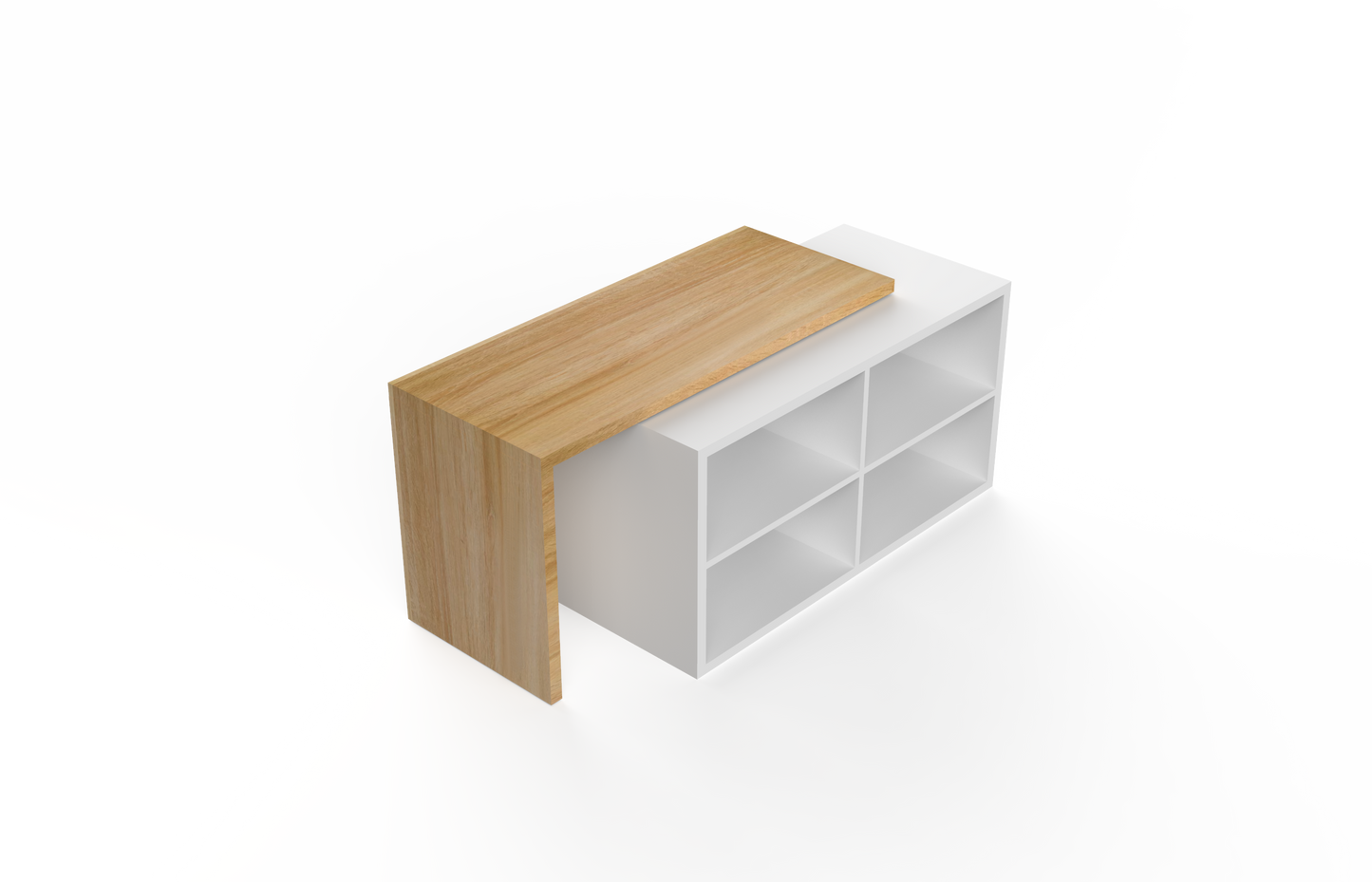

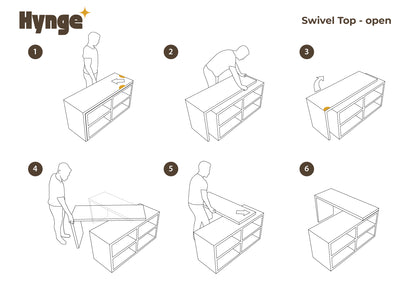

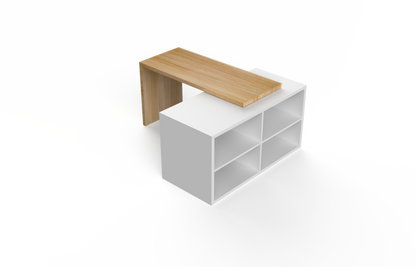

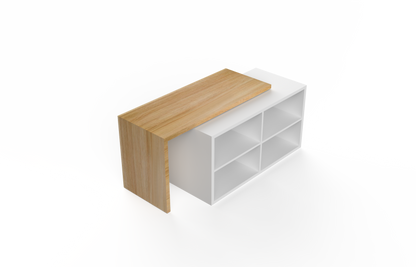

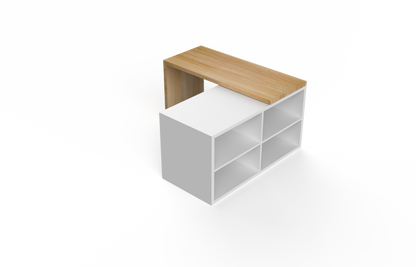

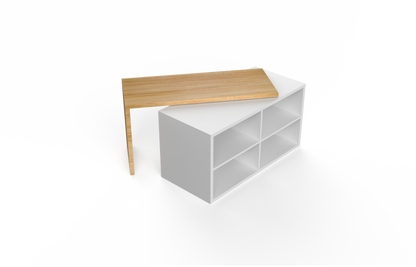

pull-turn-push move, the rectangular table or workbench is first moved away from obstructing walls, then rotated by 90 degrees and moved to the final open position for usage. And this is how your kitchen or work space can easily be expanded. When not in use, your desk or bench can be stowed away easily with our simple pull-turn-push move.
For installation a rectangular, moveable table or work bench with a side leg as well as a stationary furniture base such as a shelf or similar is required.
The installation requires milling.
Sizes and technical details
Our Swivel Top mechanism comes in two sizes:
a) ST4070 (large table mechanism Swivel Top):
Applicable width of desk (w): 480 - 700 mm
Minimum furniture thickness (t): 18 mm
Milling depth for installation (m): 13 mm
Required clearing distance - one side (s): 240 mm
Gap between furniture and desk (g): 9.3 mm
Material: Steel, plastics

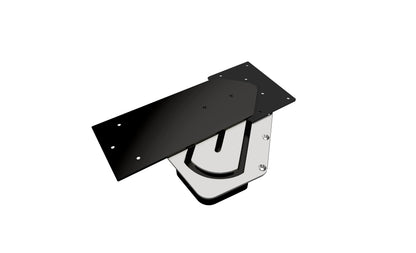

b) ST3040 (small table mechanism Swivel Top):
Applicable width of desk (w): 360 - 460 mm
Minimum furniture thickness (t): 18 mm
Milling depth for installation (m): 13 mm
Required clearing distance - one side (s): 150 mm
Gap between furniture and desk (g): 9.3 mm
Material: Steel, plastics
Includes:
- Main mechanism (ST4070 or ST3040)
- Locking plate
- 15 wood screws: D 5 x L 20 mm
- 4 felt spacer
For optimal and robust design of your corner connections, view our supporting products such as furniture metal angle or Corner Connector by Holzdesign, and for appropriate desk movement view our supporting product such as felt/plastic floor gliders and plastic castors.
Note:
- All prices shown are before VAT and Shipping. Final price at checkout.
- Please be informed that VAT cannot be waived or refunded through the online shop for EU industry customers. EU industry customers should therefore contact us outside the webshop via info@thehynge.de to purchase our products via email and a VAT free invoice (VAT ID is required).
Downloads
Installation Instruction

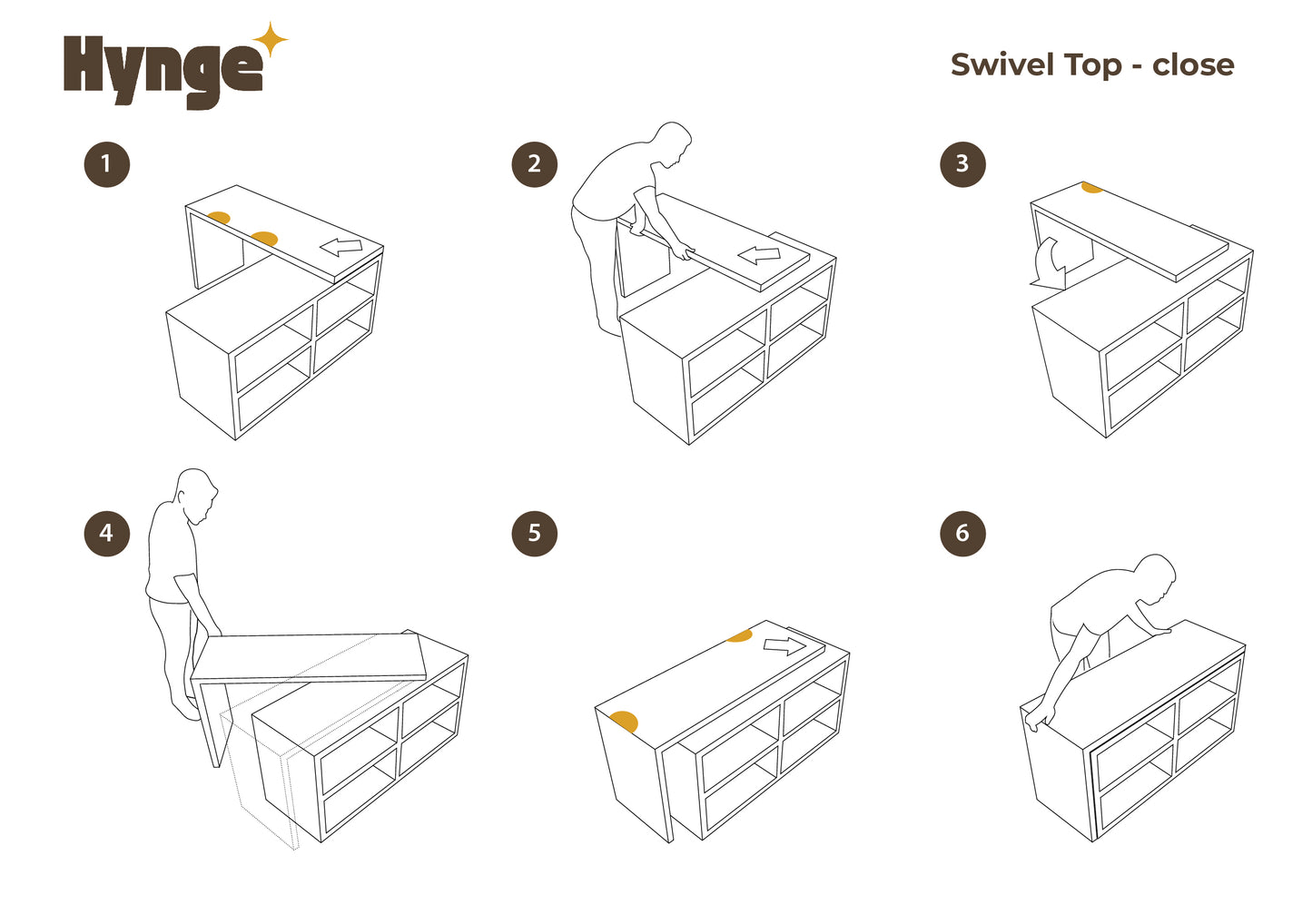

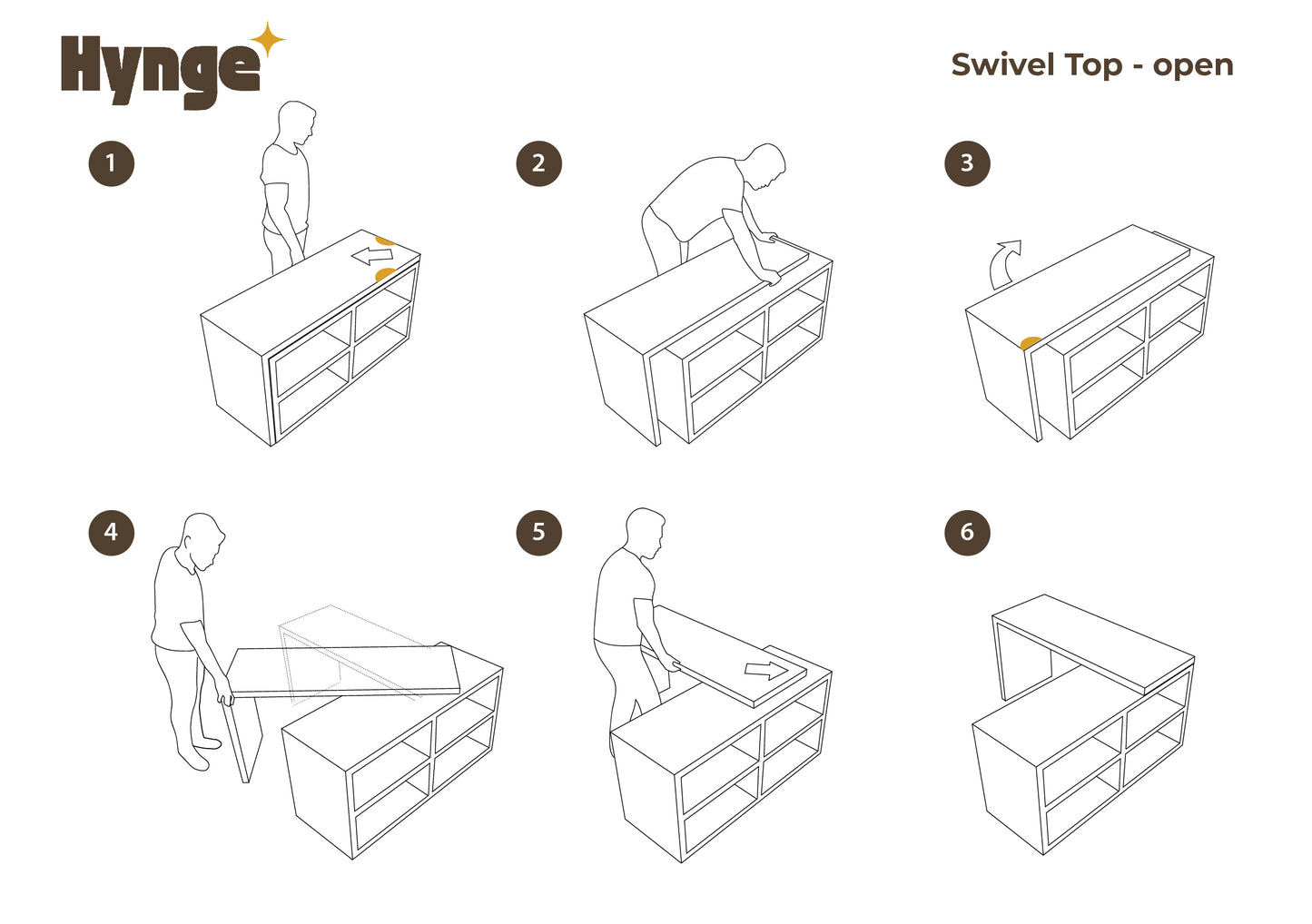

Open Close Operation
Installation Advice

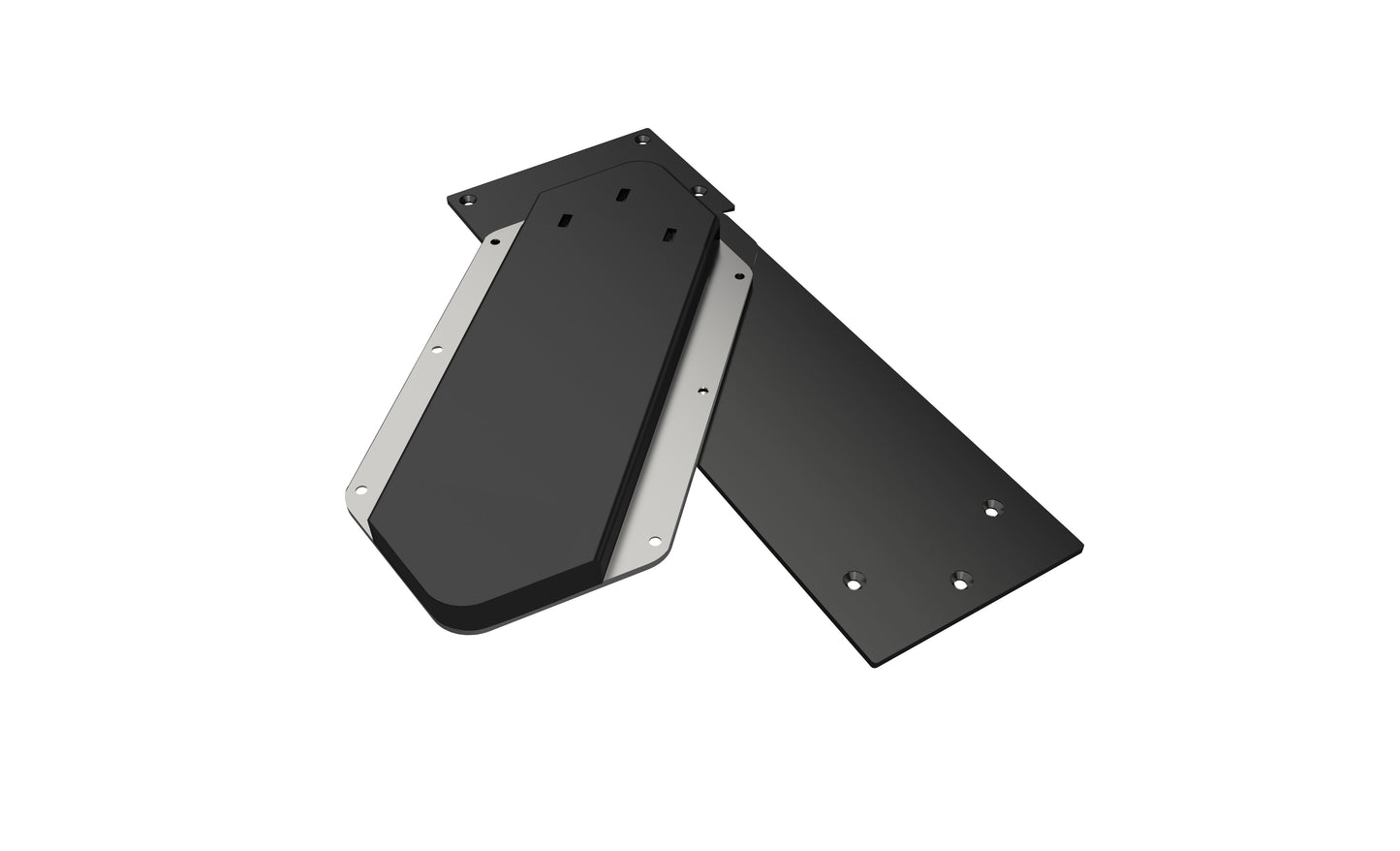

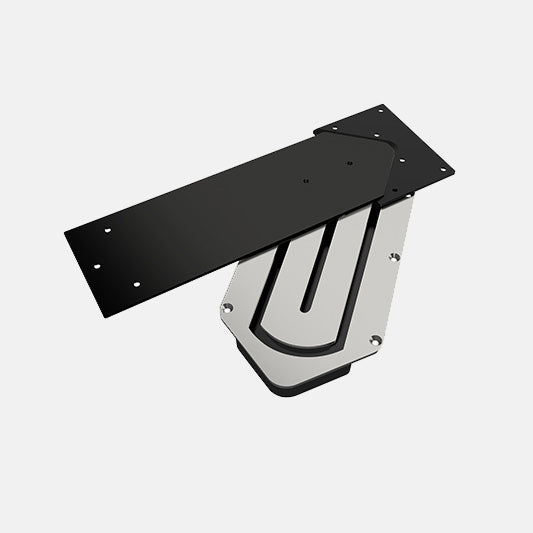

Swivel Top Mechanism
ST4070
ST4070 - 3D STEP File
ST4070 - 2D DXF File
ST4070 - 2D DWG File
ST3040
ST3040 - 3D STEP File
ST3040 - 2D DXF File
ST3040 - 2D DWG File
